WIFI Endoscope Image Transmission Board USB Input 1M Pixel

wifi endoscope wireless transmission board 1M camera supported

Product Description

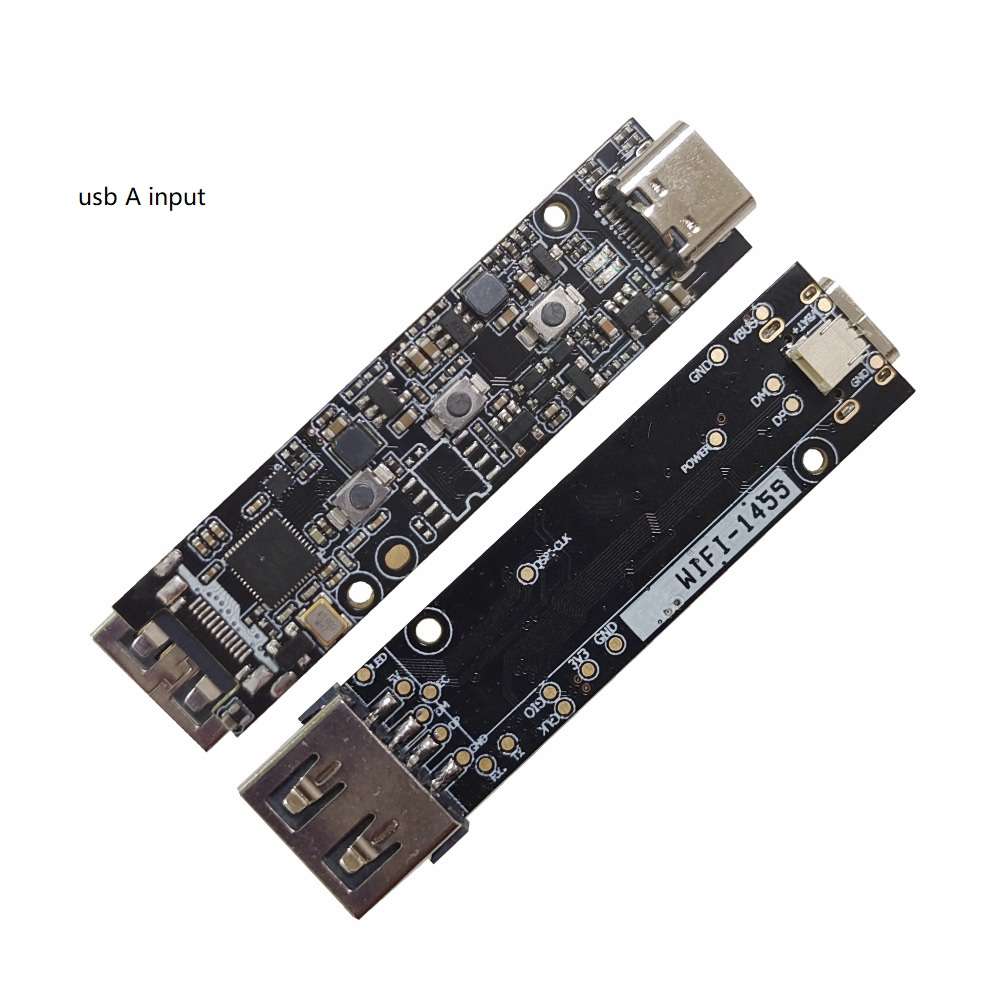

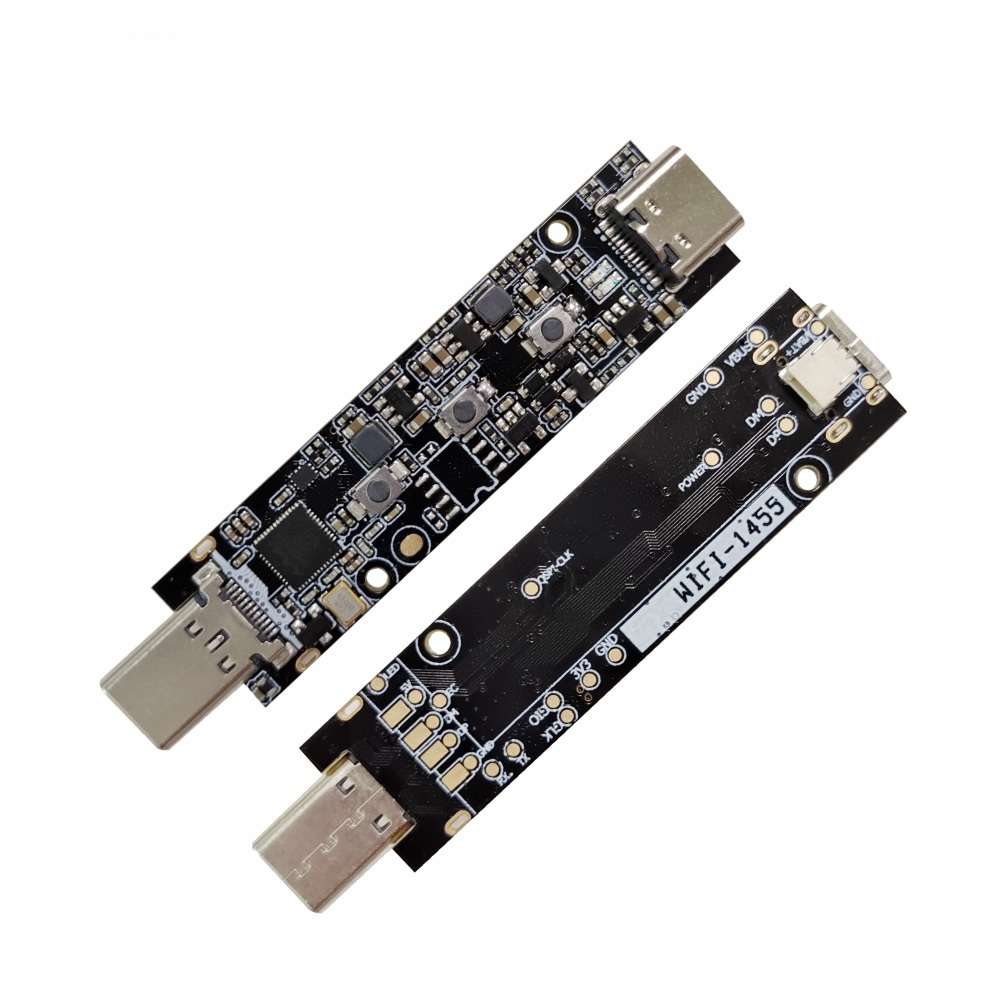

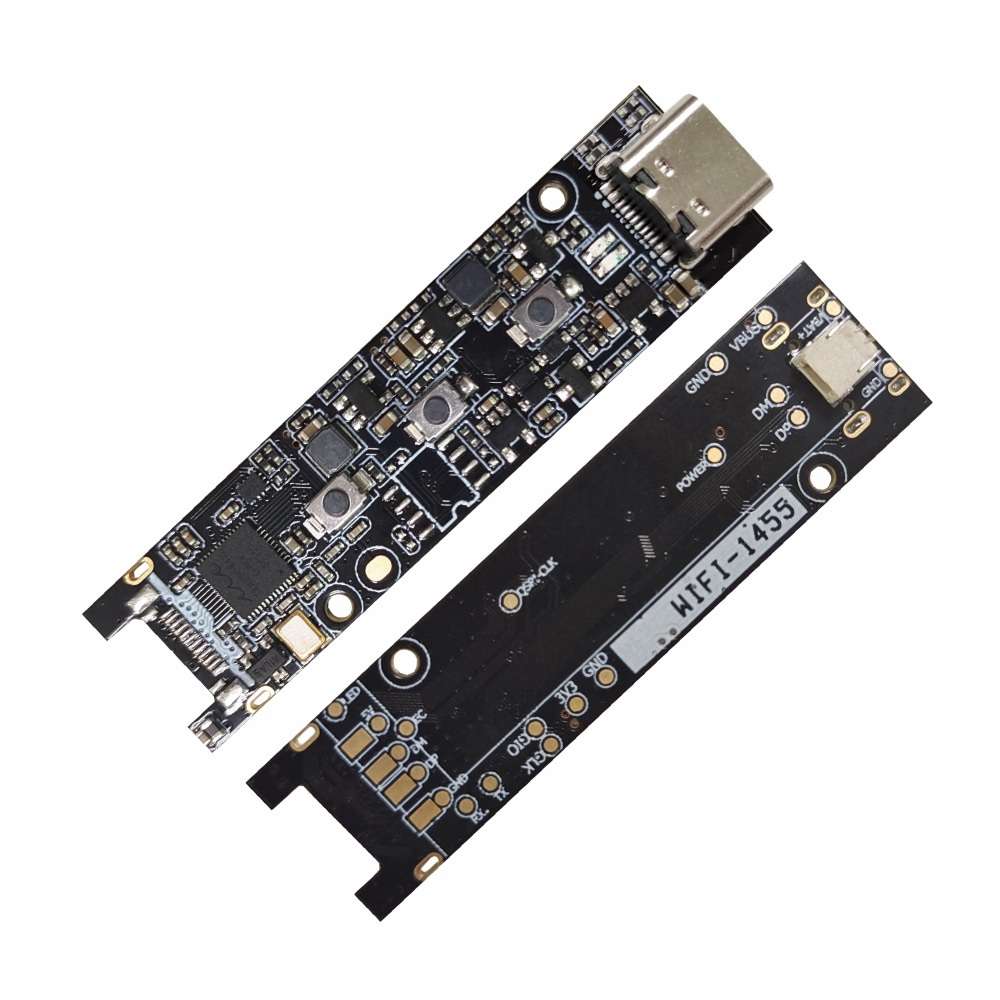

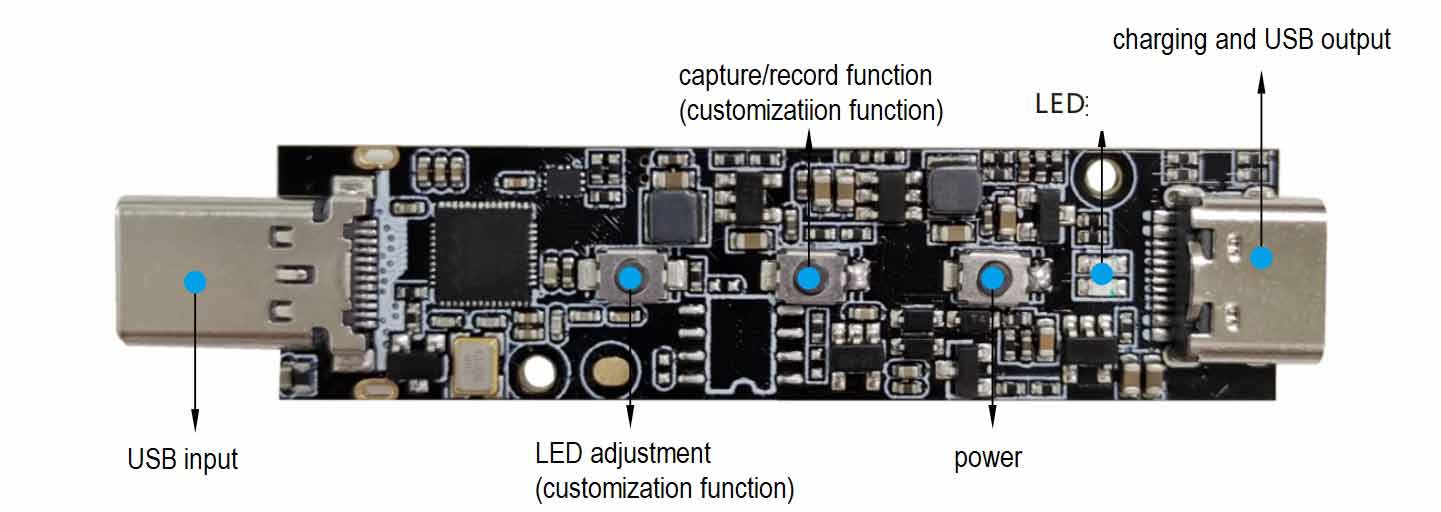

Thiis a USB input to wifi endoscope transmission board, support 1M pixels and 2M pixels high defination camera input


Power supply range: 3.7V,
average power consumption: low power consumption; 0.5W
Working temperature: -10 ℃~+70 ℃
Working mode: AP mode
Working frequency: 2.412GHZ-2.472GHZ
Network protocol: 802.11b/g/n, 802.11n
Transmission rate: 150Mbps
Transmission power: 14DBM
Antenna: Built in (ANT) 2DB
encoding format: MJPEG YUV
Resolution: Supports up to 1280 * 720
Photography Resolution: Supports up to 1280 * 720
Video resolution: VGA Video format: AVI
Browsing method: APP
storage frame rate: 15Fps
Video file size: 120MB/min
Video loop: supported
Video file naming: named after the current time
External communication interface: serial port
Startup time: 2S,
supported by mobile phones: Android/iOS
Weight: 10g

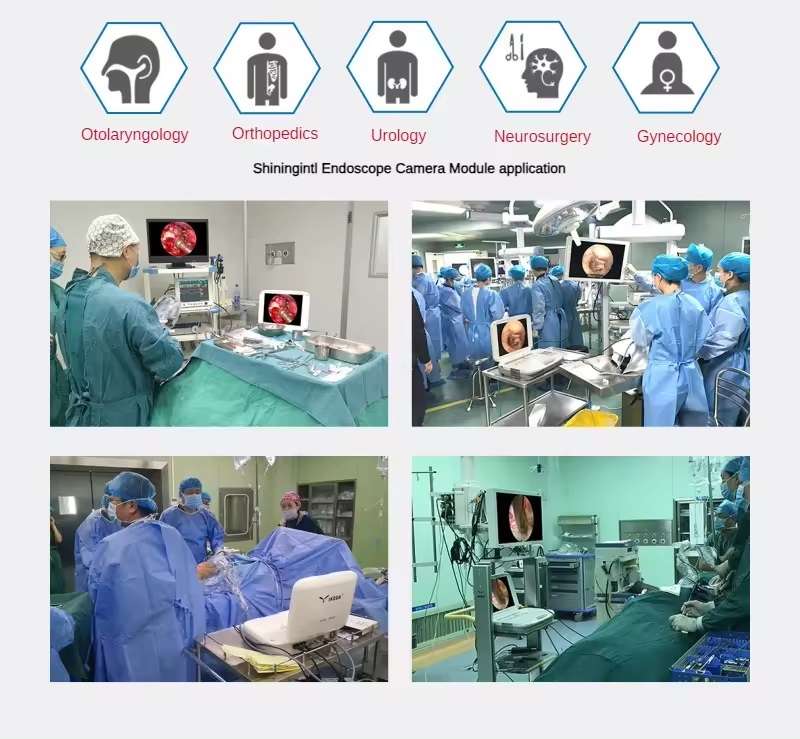

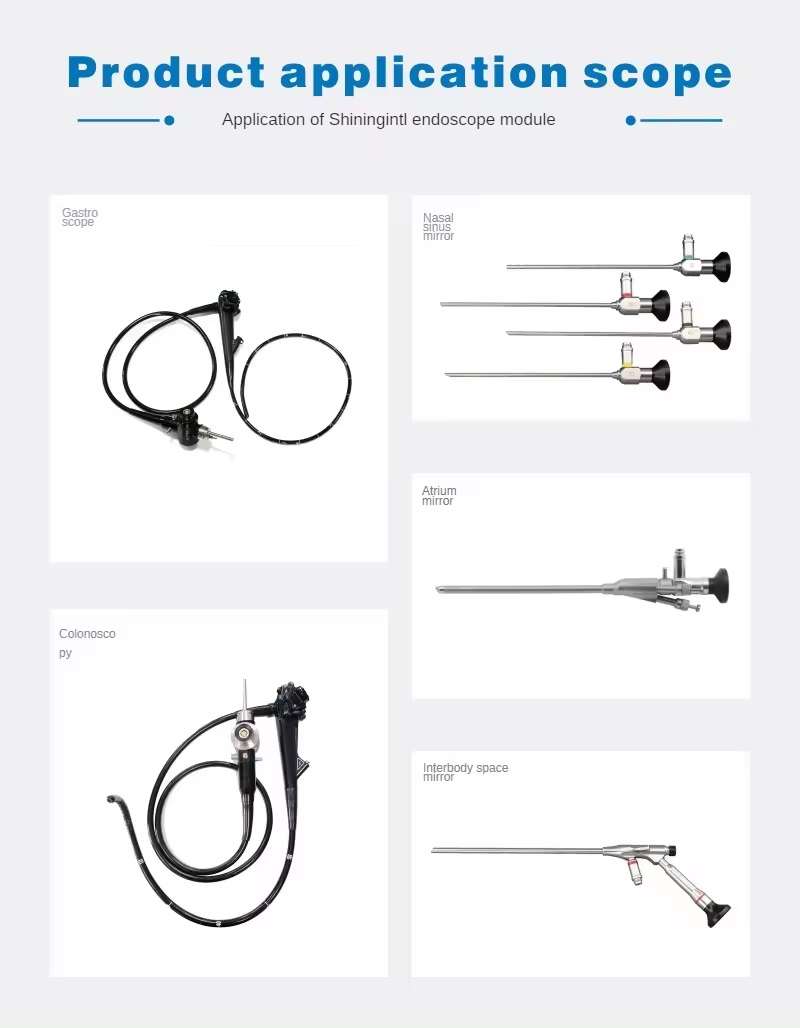

Application areas: Aerial photography (FPV), endoscopy, medical
