NXP NFC Module Card Reader Multifunction

NXP PN7150 chipset NFC Module for ISO14443A ISO14443B

Product Description

NXP NFC Card Reader Multifunction Module for Finance Credit card Debit card Transportation Card

This Smochm NXP  NFC module is for  card reader function :support iso14443a ,iso14443b, NXP`s PN7150 NFC solutions Full NFC Forum-compliant controller with integrated FW and NCI interface .

Our NXP NFC Module card reader advantage:

1.Totally compatible with android system, support standard Android system API and interface.

2.NXP PN7150 chipset inside

3.support worldwide NFC usage

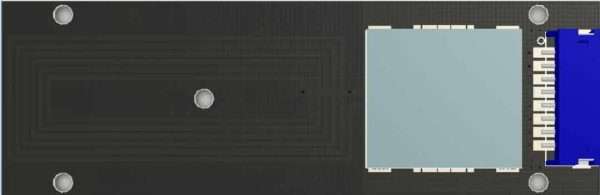

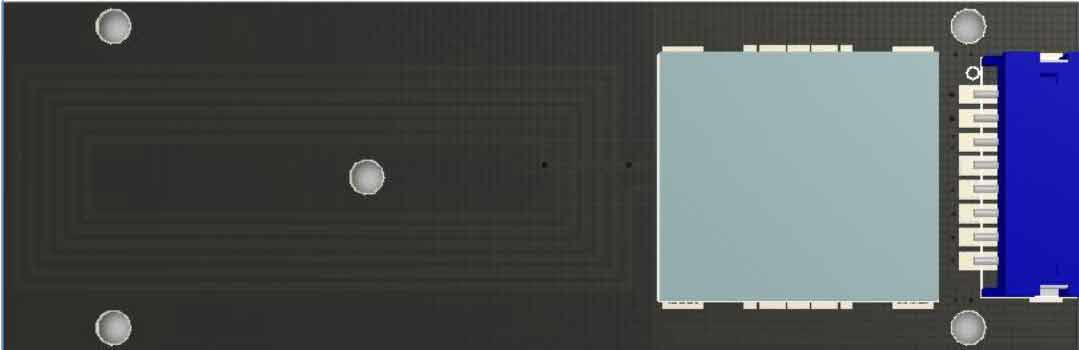

smochm-NFC-card-reader-module-for-finance iso14443a and iso14443b

NXP NFC Module Key Features:

Full hardware and software compatibility
NXP`s NFC solutions
Support for Linux, Android, Windows IoT, RTOS, NullOS
All NFC operating modes
Read/Write Mode: ISO/IEC 14443 A&B up to 848 kbit/s, FeliCa at 212 & 424
kbit/s, MIFARE 1K, 4K,
NFC Forum type 1, 2, 3, 4, 5 tags, ISO/IEC 15693
All peer-to-peer modes
Card Emulation Mode (from host): NFC Forum
T4T (ISO/IEC 14443 A&B) at 106 kbit/s, NFC Forum
T3T (FeliCa, PN7150 only)
Flexible host interface;
Supply IO voltage: 1.8 to 3.3 V
I2C interface: 3.4 Mbit/s
NCI 1.0-compliant protocol
IRQ signal for improved synchronization
Complete, power-efficient NFC control
PAD supply voltage: 1.8 or 3.3 V
VDD battery supply voltage: 2.7 to 5.5V
RF driver: 3.0 to 4.75 V, 180mA max (PN7150);
2.7 to 3.3 V, 180mA max (PN7120,NPC100)
NFC Forum device requirement: v1.3
Fully configurable polling loop with low-power mode
Load modulation scheme: active (PN7150),passive (PN7120,NPC100)

PIN Definition:

pin definition of smochm nfc card reader module

PIN Signal I/O Type Description
PIN1 PVDD PWR PAD Power supply(1.8V or 3.3V)
PIN2 VDD PWR Battery supply voltage(2.7-5.5V)
PIN5 SCL Input I2C-bus serial clock input,internal 4.7K pull-up
PIN6 SDA Input I2C-bus serial data,internal 4.7K pull-up
PIN7 IRQ Output Interrupt request output
PIN8 VEN Input Reset pin. Set the device in Hard Power Down
NOTE:Connector Type: JST S8B-ZR-SM4A-TF(LF)(SN)
