Amazing QC2.0/3.0 PD Programmable Power supply Board(PPS) DC

Product Description

Programmable power supply PPS DC module instruction:

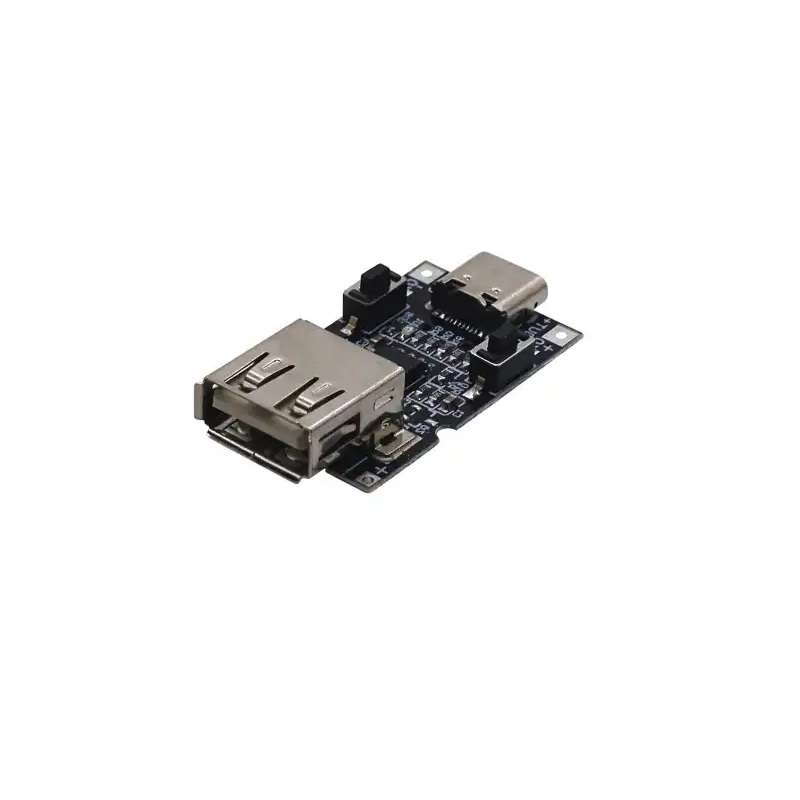

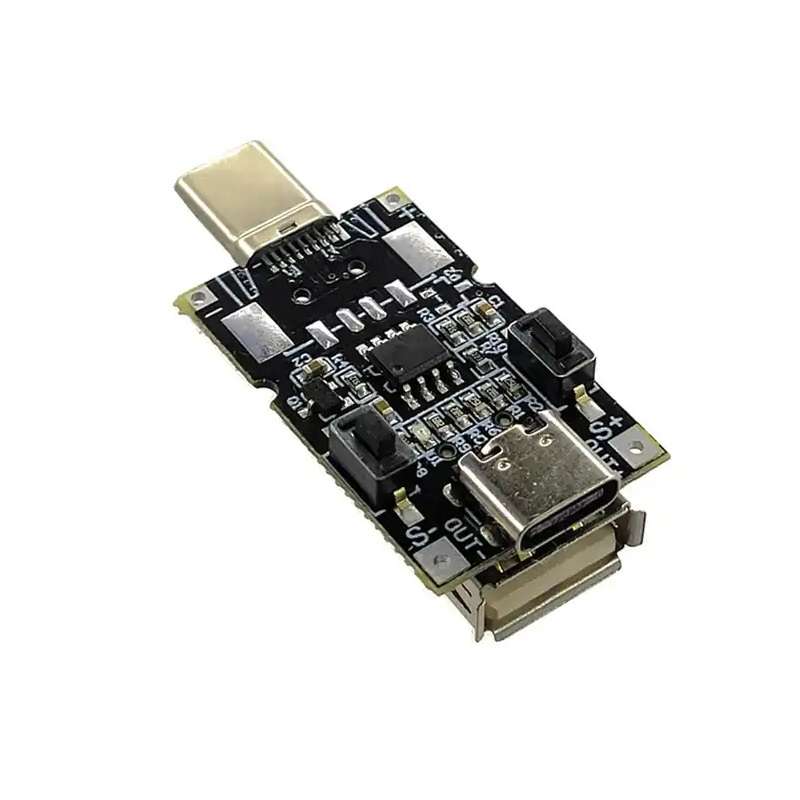

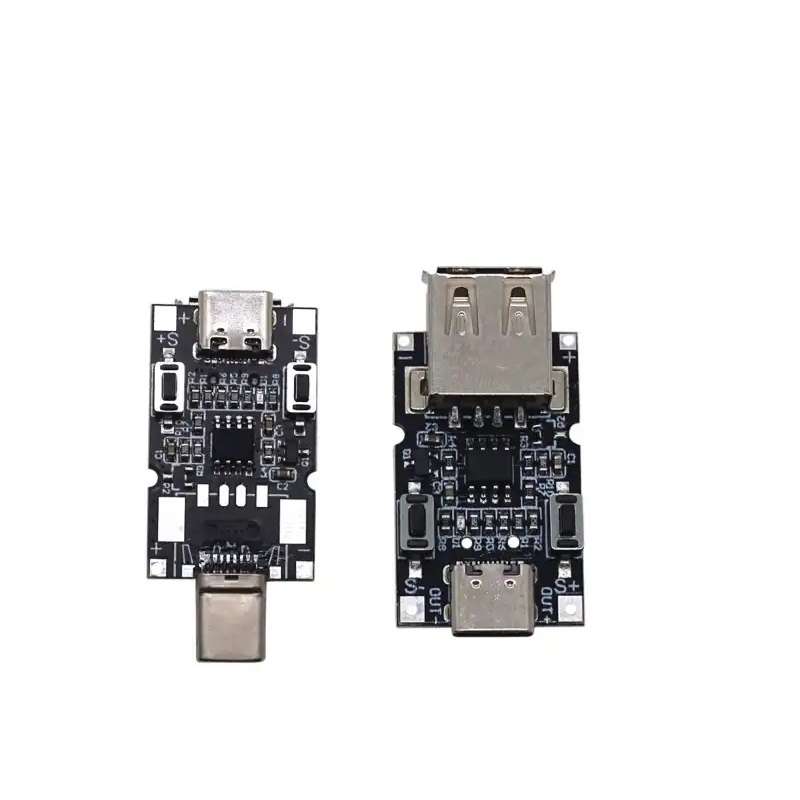

The Programmable power supply(PPS) can give a series DC output in many scenarios , it is a flexable DC method to provide DC current and voltage for many DC power electronics devices, Smochm PPS solution can bring a comprehensive usage instead of bringing lots of chargers. Instructions for smochm DC to DC QC programmable power supply module SPPS-01M:

Buy from Shiningintl

PPS Input:

TYPE-C input port,

Programmable output:

type-c plus USB output port (input can be TYPE-C male or female). 2. Supports QC3.0 and QC2.0 voltage deception outputs, with free voltage mode switching

QC20 mode DC function:

supports 5V/9V/12V/20V decoy output (the specific range and your power supply are 3 Off, power support is required.

QC3.0 mode DC functions:

supports adjustment with a precision of 0.2V from 36V to 20V (the specific range depends on whether the power supply supports it or not). Communication interruption and restart function. When the deception voltage is greater than or equal to 9V, and external interference or other 5 issues cause the deception to be interrupted, the module actively restarts the deception.

5V/9V/12V/20V quick setting. Suitable for fast switching.

7, 8. Parameter braking is saved, and the last deception setting is executed by re powering on. 9, no heating, support 100W output.

Instructions for QC2.0

Compatible with QC2.0/QC3.0/QC4.0 power supply. Output fixed 9V/12V/20V, stable operation simple press and hold the S-button, then insert the module into the power supply, at this point lure out 9V. Press and hold the S+button, then insert the module into the power supply, and lure out 12V. Press and hold the S+and S – buttons, then insert the module into the power supply, and lure out 20V at this time

instructions for QC3.0

Compatible with QC3.0/QC4.0 Power supply, the output range is from 3.6V to 20V, and each step is 0.2V for increasing or decreasing, the  output may relate to the power supply

plug the module into the power supply,  press and hold the S+ button , an then press and hold on the S-, one second later, relaease the S-, and then release the S+.  When the module reconnect to power supply, the output will reset to 5V again.  Fast increasing: hold on the S- button , and then press the S+, each press increase 1V

Q&A for the programmable power supply PPS

What is the output current? A: the module only responds to ask the power supply to output the current it watn, the current can’t exceed the USB standard: type-c is 5A, and USB-A is 3A only,  the real current will depend on the power supply and the consumption device together,  it means if your device need only 1.5 A, then the current won’t be over 1.5A.

is the output voltage precise? Answer: The moudul is only responsible for telling the power supply how high voltage I need you to output, and the module does not have the function of determining the actual voltage, which is influenced by factors such as the voltage accuracy and current of the power supply itself.
