Shiningintl frequency jammer solution (also called Shiningintl signal jammer solution or Shiningintl radio jammer solution) is a radio device that deliberately disrupts wireless communication by transmitting interfering signals on the same frequency as the target communication system. This interference can block, degrade, or confuse the original signal, rendering devices like cell phones, GPS, Wi-Fi, and radios ineffective within the jammer’s range. It can be widely applied in many industires such as information protection, security and military environment.
How Shiningintl Frequency Jammers Solution Work
Shiningintl frequency jammer solutions have different technical theories to handle different situations. noramlly there are two types of technical solutions: signal deception(spoofing) and signal suppression interference
- Targeting Specific Frequencies
- Shiningintl Jammers solution can emit radio waves on the same frequency as the device they intend to spoof(e.g., navigation satilites signals ofGPS, GLONASS, BeiDou, and Galileo ).
- The interference overwhelms the legitimate signal, making communication impossible.
- Types of Jamming
- Noise Jamming: Floods the frequency with random noise (e.g., CW/PSK/ white noise / flicker noise /ARB…).
- Deceptive Jamming: Mimics real signals to confuse receivers (e.g., fake GPS coordinates) please refer to the spoofer solution.
- Pulse Jamming: Uses short, high-power bursts to disrupt radar or communication systems .
- Applications
- Military & Defense: Used to disable enemy communications and radar.
- Law Enforcement: Prevents remote detonation of explosives or disrupts criminal communications 1.
- Security Facilities: Blocks unauthorized wireless transmissions in sensitive areas (e.g., prisons) .

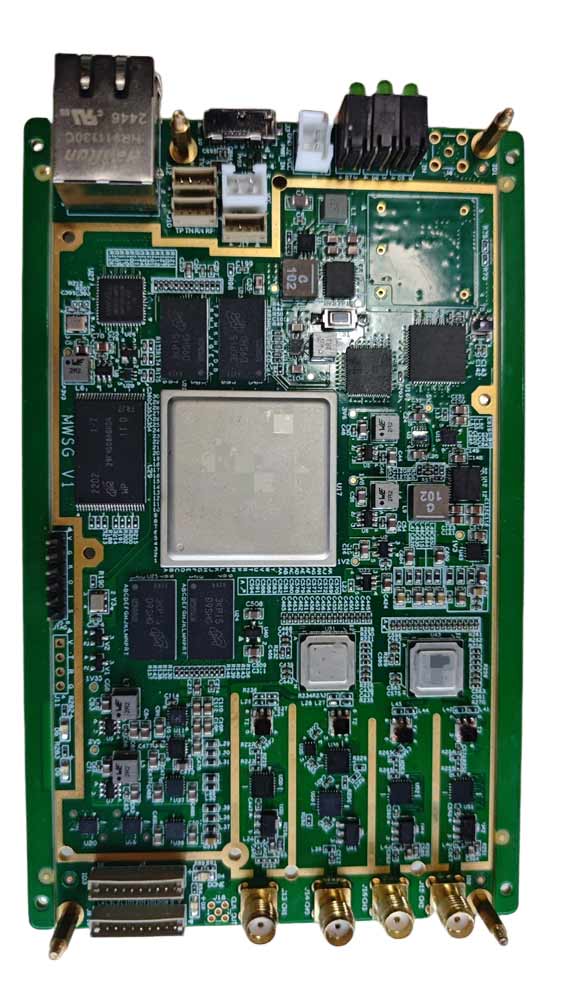

Shiningintl Frequency Suppression Jammer Solution Features
- Support setting up devices through network ports (or 422 serial ports);
- Support full frequency interference coverage (30M~6000MHz/30M-18000M)
- Support automated interference of detected spectrum through programming
- Support setting interference frequency point, interference bandwidth, interference methods, interference starting frequency& stopping frequency
- Supports multiple interference modes that can be configured (CW/PSK/white noise/flicker noise)
- Support flexible interference whitelist settings to avoid our own useful signals
- Supports loading ARB interference waveforms through the network port, and the board already has multiple built-in interference methods
- Support multi-target, all-round defense, and can target drone clusters
- It can be used as a standalone device and can be operated in conjunction with wireless direction finding equipment, radar equipment, and other systems (supported by defense system software platforms) to achieve automatic interference of drones.
Parameters
The parameters of standard version:
| Items | Typical value (external commitment value) |
| OUTPUT FREQUENCY | 30MHz~6GHz |
| frequency accuracy | ≤1ppm |
| RF Channel | 4 channels |
| Instantaneous Bandwidth | ≤200MHz(customization for 600MHz) |
| Instantaneous channel count | ≥10 channels， Number of frequency points that can simultaneously and instantaneously transmit interference |
| power range | -50dBm~5dBm |
| Power step | ≤0.25dB |
| Power accuracy | ≤±2dB |
| Spurious suppression | ≥30dBc |
| Harmonic Suppression | ≥28dBc |
| Waveform format | CW/PSK/ white noise / flicker noise /ARB… |
| White list format | Support customers to set 32 whitelist frequency bands and automatically avoid them |
| Board Size (width, length, height) | ≤100*180*20mm |
| weight | ≤0.5kg |
| power consumption | ≤20W typical |
| INPUT VOLTAGE | 12V |
| operation temperature | -25~55℃ |
| storage temperature | -25~70℃ |
| RFOUT | SMA *4 |
| REF | SMA *1 |
| LAN | RJ45，1000M network interface |
| Series port | 422 |
More details please contact us
