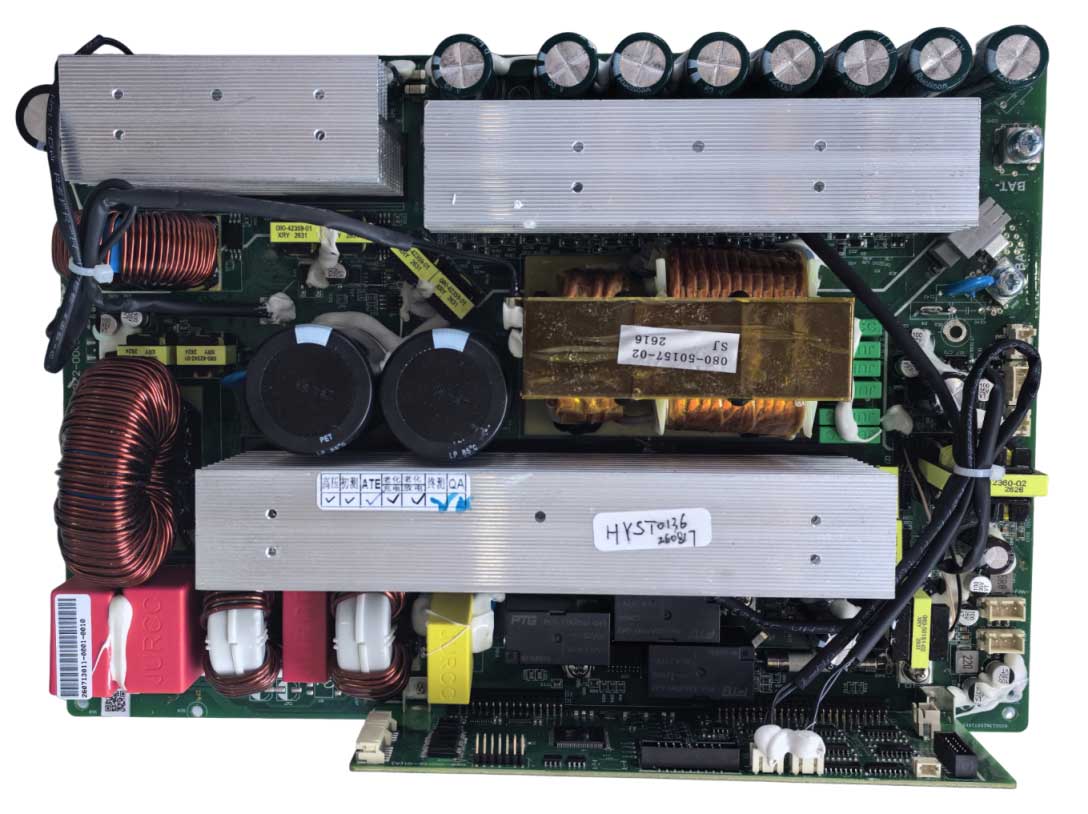

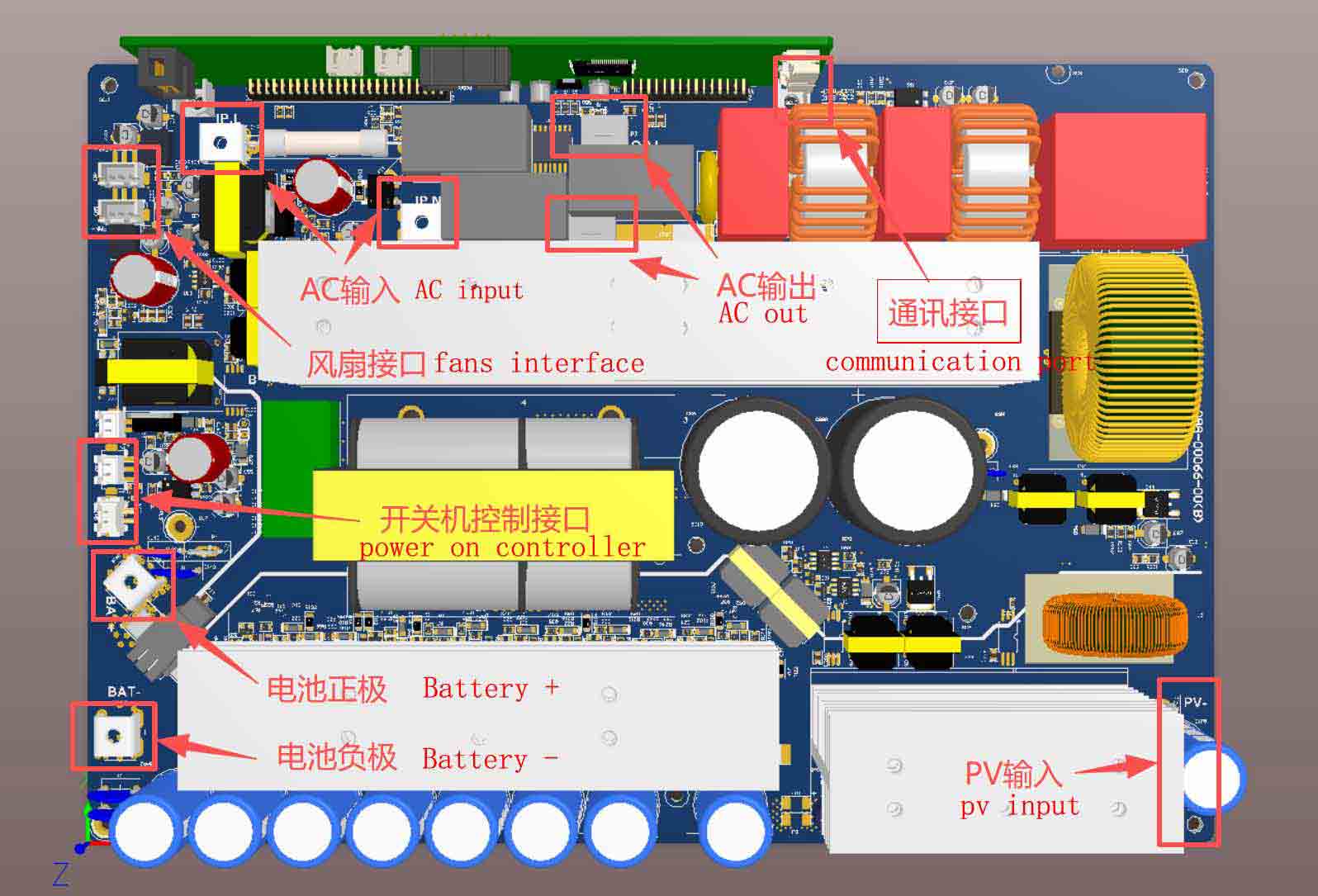

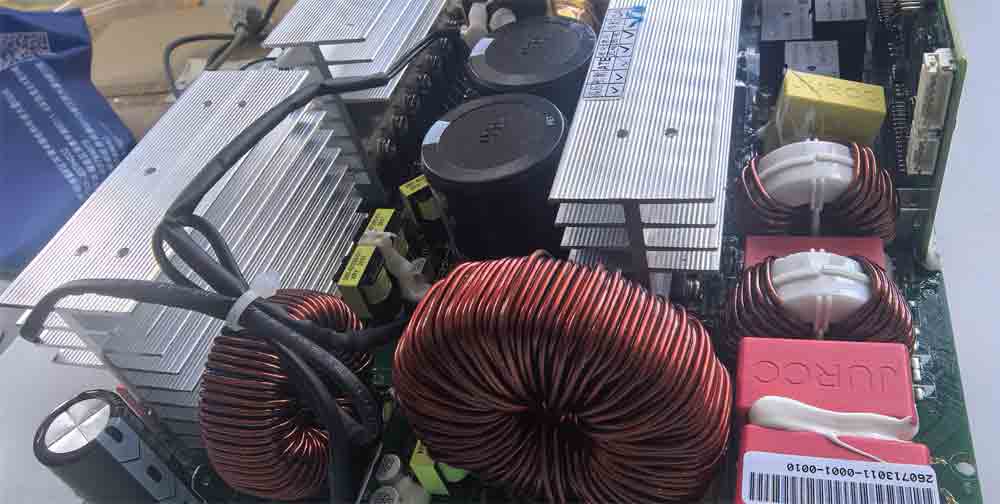

3600W bidirectional inverter，1000W MPPT, 40V-60V battery
Product Description
| Model | PK3600-M |
| Rated power | 3.6kVA/3.6KW |
| Peak power | 7.2KW |
| Maximum capacity per liter ② | 3.6KW |
| Number of input and output phases | Single phase input/single phase output |
| Working mode | Automatic charging: connect to the mainssupply to automatically charge the battery Manual inverter discharge: manually start battery inverter AC outputUninterruptible power supply mode: mains AC direct supply, mains interruption automatic switching inverter power supply |
| UPS mode transition time | <10ms |
| Number of output linesRated voltageOutput voltageaccuracyOutput frequencyOutput waveformOutpu tdistor tion (THD V%)Overloadcapacity | Single-phase two-wire (L, N) + protective ground208/220/230/240Vac±1%50/60Hz ± 0.1% (fixed frequency mode)/AC mode with mains supplyPure sine wave< 2% (linear load)< 5% (non-linear load)30 s @ 105% ~ 120% rated load10 s @ 120% ~ 150% rated load0.2S @ > 150% rated load |
| Mains input | Enter the number of linesInput voltage rangeEnter the frequency rangeInput power factor | Single-phase two-wire (L, N) + protective groundZero fire phase voltage: 176 ~ 276VAC40Hz-70Hz≥0.95 |
