Shiningintl Android Industrial Motherboard Solution   Recently updated !


About Shiningintl Android motherboard solution

Shiningintl Android motherboard solution is widely apply in many industries, such as finance, medical device, kiosk, advertising,  we have the total solution for hardware design, software development, system integration,  our android solution has been applied in many countries .

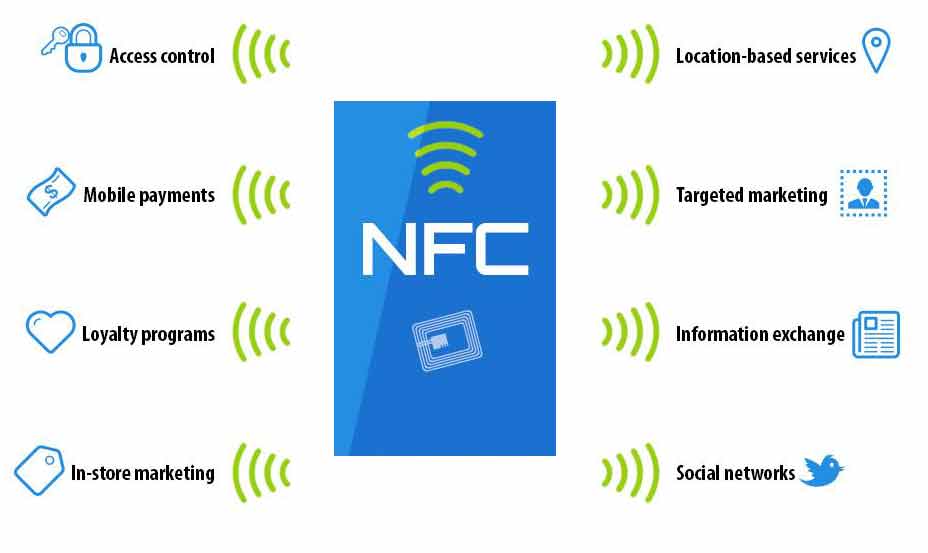

Shiningintl Android NFC solution

ll Full hardware and software compatibility NFC solutions
n Support for Linux, Android, Windows IoT, RTOS, NullOS

lAll NFC operating modes
n Read/Write Mode: ISO/IEC 14443 A&B up to 848 kbit/s, FeliCa at 212 & 424
kbit/s, MIFARE 1K, 4K,
n NFC Forum type 1, 2, 3, 4, 5 tags, ISO/IEC 15693
n All peer-to-peer modes
n Card Emulation Mode (from host): NFC Forum
n T4T (ISO/IEC 14443 A&B) at 106 kbit/s, NFC Forum
T3T (FeliCa, PN7150 only)

ll Flexible host interface;
n Supply IO voltage: 1.8 to 3.3 V
n I2C interface: 3.4 Mbit/s
n NCI 1.0-compliant protocol
n IRQ signal for improved synchronizati

lComplete, power-efficient NFC control
n PAD supply voltage: 1.8 or 3.3 V
n VDD battery supply voltage: 2.7 to 5.5V
n RF driver: 3.0 to 4.75 V, 180mA max (PN7150);
2.7 to 3.3 V, 180mA max (PN7120,NPC100)
n NFC Forum device requirement: v1.3
n Fully configurable polling loop with low-power mode
n Load modulation scheme: active (PN7150),
passive (PN7120,NPC100)

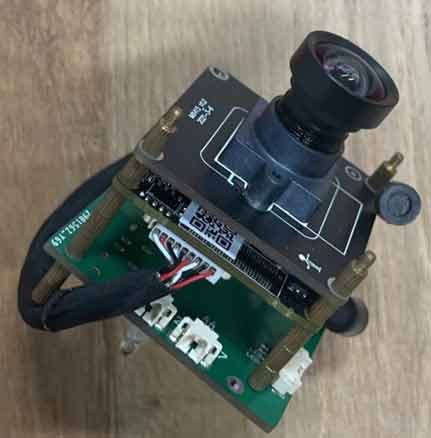

Shiningintl Android Machine Vision Solution

Shiningintl Machine vision systems capture, analyze, and understand images or videos

Main controller:ARM Cortex-A76

Camera: USB 12M pixels video camera

Shiningintl Android Medical Image Solution

The use of the Android operating system in medical devices has been increasing due to its flexibility, extensive app ecosystem, and cost-effectiveness. Here’s a detailed look at how Shiningintl Android solution is integrated into medical devices and the benefits it offers:

1. Flexibility and Customization

  • Custom ROMs: shiningintl creates customization Android based on  healthcare needs. These custom ROMs can include specialized software and interfaces that are not available on generic Android devices.
  • Hardware Compatibility: Shiningintl Android’s adaptability allows it to run on a wide range of hardware configurations, from handheld tablets to complex diagnostic machines.

2. App Ecosystem

  • Diverse Applications: our system can support medical apps for various purposes, such as electronic health records (EHR), telemedicine, diagnostic tools, and patient education.
  • Third-Party Development: clients can create their applications based on enhancing the functionality of the device.

3. Cost-Effectiveness

  • Lower Development Costs: we have developped lots of hardware and software, the solution can porive a fast, low cost hardware and software system for the clients.
  • Off-the-Shelf Components: Many components and modules designed for Android devices are readily available, further reducing manufacturing costs., such as the NFC, 4G, and scnners.

4. Interoperability

  • Data Integration: Android devices can easily integrate with other systems and platforms, including hospital information systems (HIS) and electronic medical records (EMR).
  • Standard Protocols: Support for standard communication protocols like HL7 and FHIR facilitates seamless data exchange between different medical devices and systems.

5. User-Friendly Interface

  • Intuitive Design: Android’s user-friendly interface makes it easier for healthcare professionals to navigate through various functionalities without extensive training.
  • Voice and Touch Interactions: Support for voice commands and touch interactions can enhance usability, especially in clinical settings where hands-free operation is beneficial.

shiningintl android solution in medical device

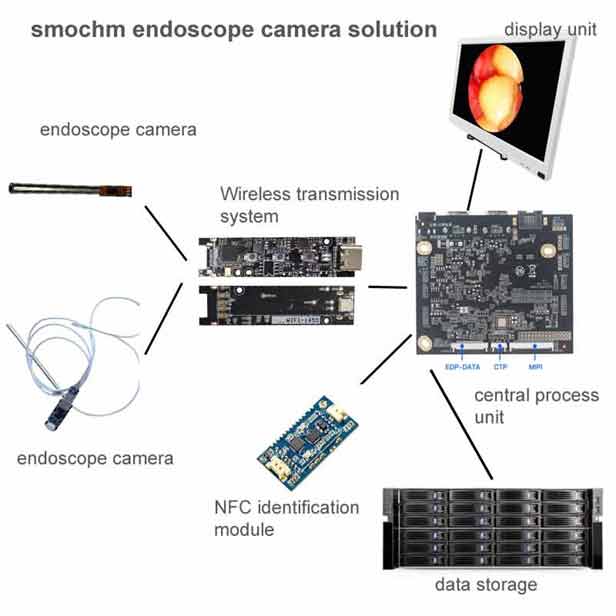

here is the successful story to apply our android system board on medical endoscope system.

successful sotry to apply shiningintl android board on medical device





get more information here
