Shiningintl Navigation Satellite Deception C-UAV Four-Frequency Board

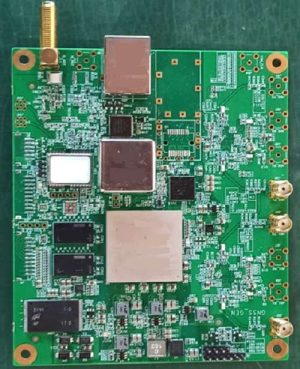

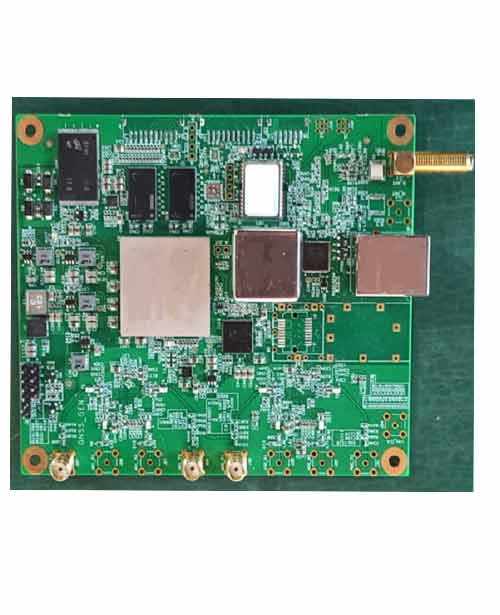

Product Description

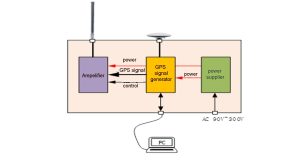

System architecturer:

Product Features

1. Supports signal reception and simulated transmission for common frequency points of the four major global navigation satellite systems.
2. Deceives drones reliant on satellite navigation systems to achieve objectives such as forced landing, course deviation, takeoff prevention, and signal interference.
3. Supports external direction-finding modules to identify target orientation and control horizontal movement (forward, backward, left, right) via course deviation.
4. Allows external command control for arbitrary navigation signal combinations.
5. Enables external command configuration of arbitrary coordinates (longitude, latitude, altitude) or preset fixed coordinates.
6. Adjusts simulated parameters (signal delay, motion speed, acceleration) via external commands.
7. Supports preset trajectories (linear, circular) and external trajectory injection for dynamic signal output.
8. Operates in real-time ephemeris mode or permanent ephemeris mode.
9. Auto-transmits preset coordinates upon power-up.
10. Provides satellite navigation signal suppression and jamming output.
11. Offers secondary development interfaces: serial (RS422) and Ethernet (RJ45).

Key Technical Specifications

Technical Parameters

• Supported Systems & Frequencies:

• Signal Reception Frequencies: BDS-B1, GPS-L1, GLONASS-L1, Galileo-E1.
• Max Transmission Power: ≥-10dBm.
• Power Adjustment Range: 80dB (1dB resolution).
• Startup Time: 40s.
• Signal Synchronization Time: <180s.

Physical Dimensions & Interfaces

• Dimensions (excluding connectors): 120mm (L) × 100mm (W).

• Weight: <150g.
• Power:
  • Input Voltage: DC 10–28V.
  • Power Consumption: ≤9W.
• Interfaces:

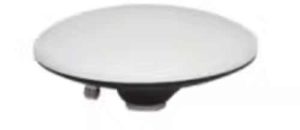

  • Signal Input: SMA port (supports DC +5V feed).

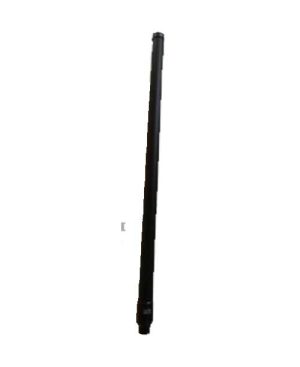

  • Signal Output: SMA port.
  • Power Input: XH2.5-2P male connector.
  • Serial Communication: HC-ZH-4PWT (RS422).
  • Ethernet: RJ45.

Operating Environment

• Operating Temperature: -40℃ to +60℃.
• Storage Temperature: -40℃ to +80℃.
