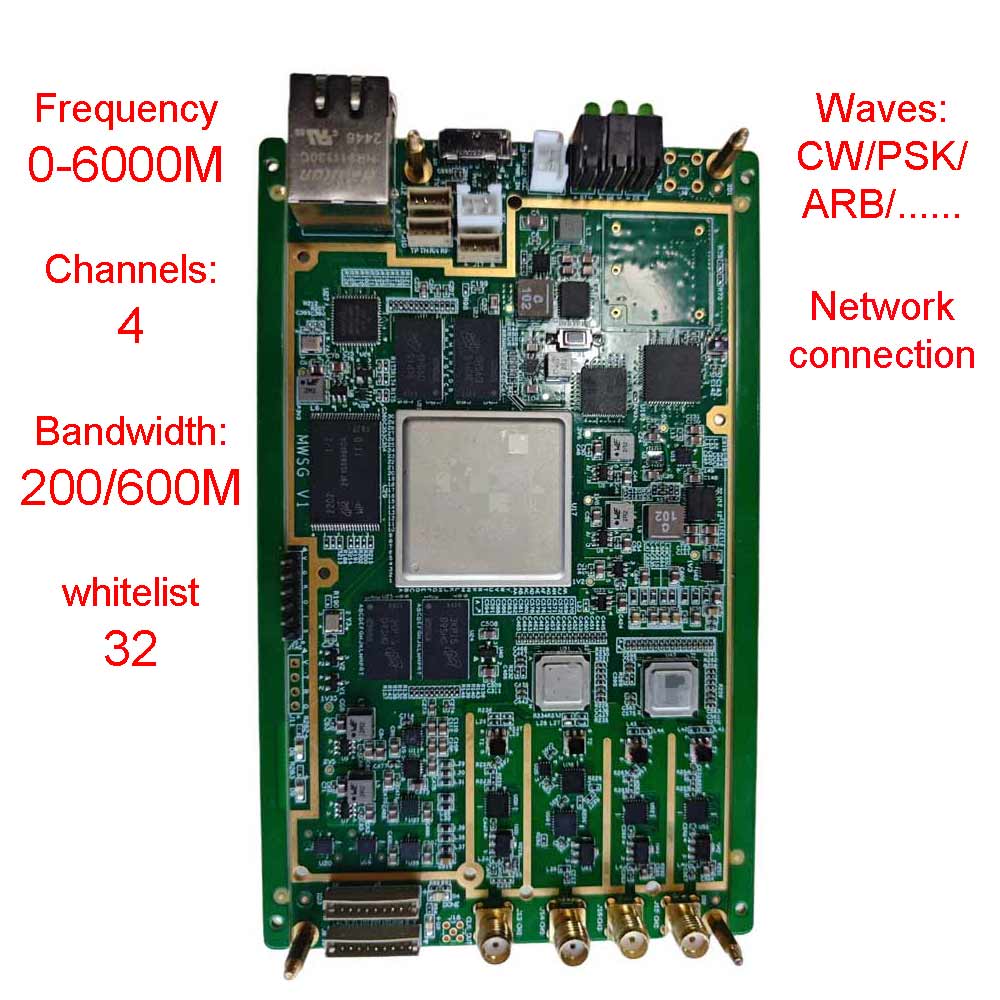

Shiningintl SJ-6G1 is a motherboard for C-UAV anti-drone jamming system, it can be used to build different anti-drone products such as handheld jammer gun, jammer station or portable jamming device.
Product Description
Shiningintl SJ-6GA is a 0-6000M full frequency wide band C-UAV(counter Unmanned Aerial Vehicle) jammer solution, it covers from 30M to 6000M bandwidth, provide flexible capability in security protection, based on this motherboard, the clients can create security products like jammer gun, omnidirectional jammer device, the distance can vary with different amprifier module.
fearturs:
1.widely frequency support, this jammer module supports 30M to 6000M frequency
2.configuration interface support: this module provides RJ45 network interface and RS422 series port to connect to computer for configuration.
3.programble to automatically interfere the frequency point detected by the board
4.functions setting: inteference frequency point, interference bandwidth, inteference modulate
5interference wave configuration: white noise, CW, FSK ，flicker noise and other noise
6.whitelist setup: support 32 channel whitelist, to avoid communicaton interference of our side device.
7.multiple target interference at the same time.
SJ-6GA Parameters:
| Items | Typical value (external commitment value) |
| OUTPUT FREQUENCY | 30MHz~6GHz |
| frequency accuracy | ≤1ppm |
| RF Channel | 4 channels |
| Instantaneous Bandwidth | ≤200MHz(customization for 600MHz) |
| Instantaneous channel count | ≥10 channels， Number of frequency points that can simultaneously and instantaneously transmit interference |
| power range | -50dBm~5dBm |
| Power step | ≤0.25dB |
| Power accuracy | ≤±2dB |
| Spurious suppression | ≥30dBc |
| Harmonic Suppression | ≥28dBc |
| Waveform format | CW/PSK/ white noise / flicker noise /ARB… |
| White list format | Support customers to set 32 whitelist frequency bands and automatically avoid them |
| Board Size (width, length, height) | ≤100*180*20mm |
| weight | ≤0.5kg |
| power consumption | ≤20W typical |
| INPUT VOLTAGE | 12V |
| operation temperature | -25~55℃ |
| storage temperature | -25~70℃ |
| RFOUT | SMA *4 |
| REF | SMA *1 |
| LAN | RJ45，1000M network interface |
| Series port | 422 |
