x86 Intel i7 fanless no noise scp-02 model mini PC high performance computer and industrial windows embedded computer

Fanless Intel i7 7500u multiple function computer ultra low

power fanless mini pc with 4G RAM 1T hard disk

applications:

1.home entertainment computer and data center

2.digital signage and billboard

3.hotel and public computer

4.office work

5.children education

6.public entertainment

7.industrial control and windows embedded

Description

Fanless Intel i7 7500u multiple function computer ultra low

power fanless mini pc with 4G RAM 1T hard disk

applications:

1.home entertainment computer and data center

2.digital signage and billboard

3.hotel and public computer

4.office work

5.children education

6.public entertainment

7.industrial control and windows embedded

ProcessorOnboard Intel Core i7 7500U 2.7GHz Max 3.5GHz(Turbo boost Technology)Dual Core 4 thread
Operating SystemWindows 10(only)/ Linux
StorageSSD: 8GB/16GB/32GB/64GB/128GB/256GB/520GB

HDD: 80GB/160GB/320GB/500GB/750GB/1TB

Memory

Memory Type

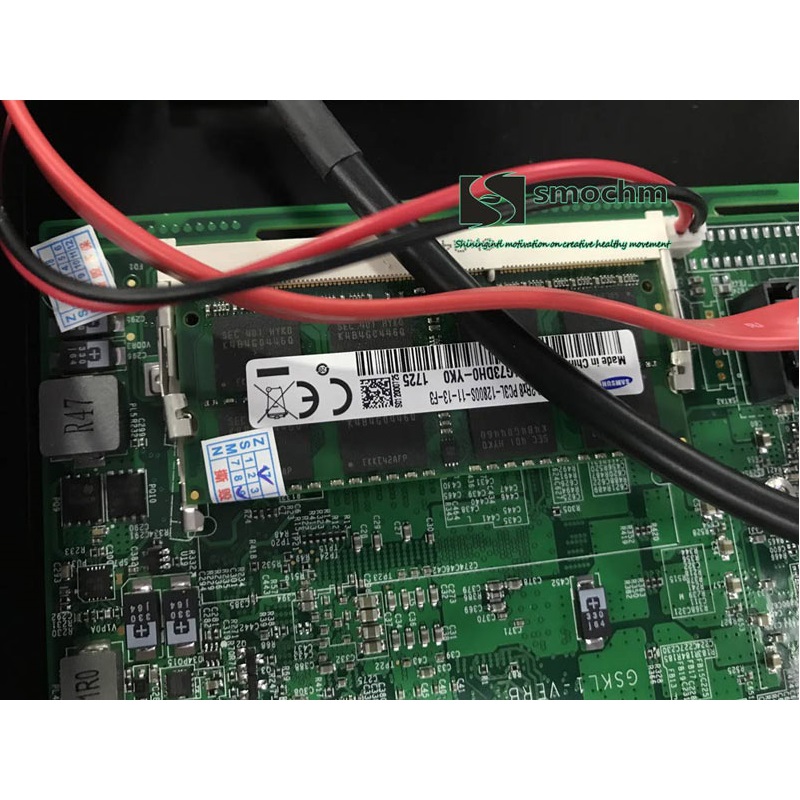

4GB/8GB/16GB/32GB DDR4 2133/2400MHz laptop ram

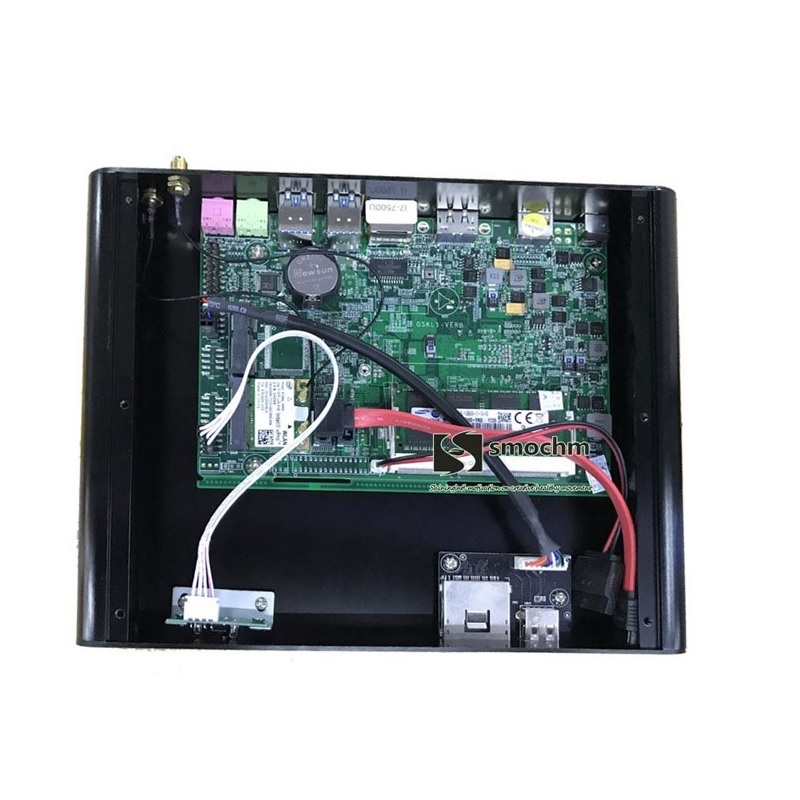

MotherboardIntel Kaby Lake-ULT
Processor details
CPUIntel Core i7 7500U
Clock Speed2.7GHz
Turbo clock Speed3.5GHz
Processor Number2 core/ 4 threads
Core codeKaby Lake
Technique14nm
L1 data cache2 * 32 KB, 8-Way, 64 byte lines
L2 code cache2 * 32 KB, 8-Way, 64 byte lines
L3 cache4MB, 12-Way, 64 byte lines
CharacteristicMMX, SSE, SSE2, SSE3, SSSE3, SSE4.1, SSE4, AVX2.0,  SSE4.2, HTT…
BIOSAMI BIOS, ACPI supported, support call on function automatically, Wake-On-LAN
FunctionHyper-Threading, Virtualization technology, 64 bit computing
Graphic CardsIntel HD Graphics 620
Audio CardsALC662 sound chip, 6-channel

Intel Panther Point HDA

Network cardRTL8168E PCI-E Gigabit Ethernet NIC
Ethernet10/100/1000 BaseT LAN
WIFIWith dual antenna, 802.11.b/g/n(300M)

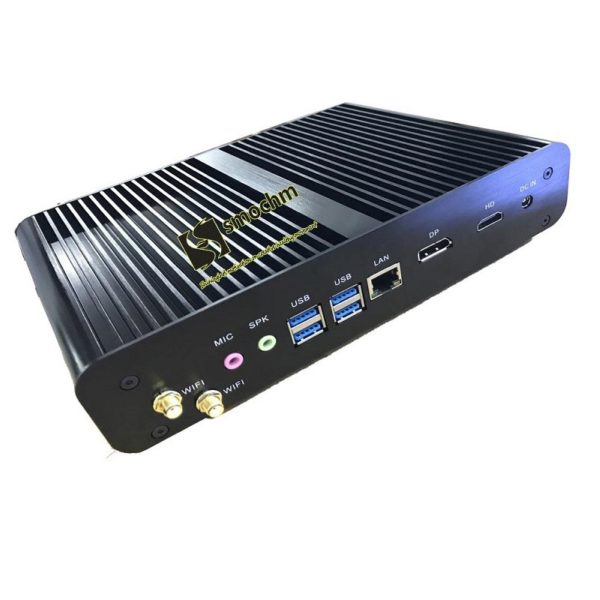

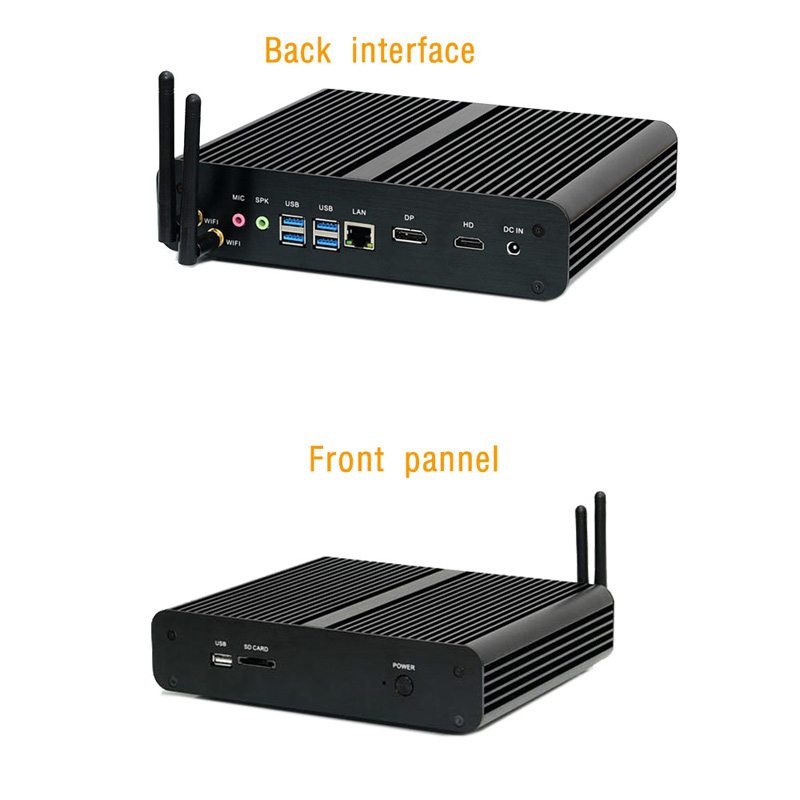

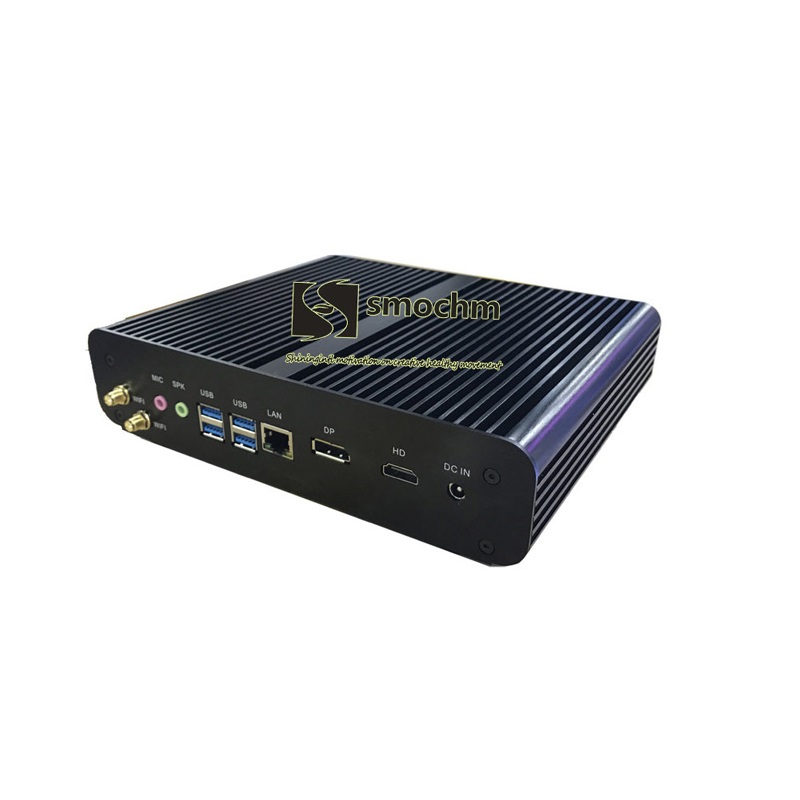

I/0 Port
Display port1*DP + 1*HDMI
USB port4* USB 3.0, 1* USB2.0, 1*SD card reader
SATA port1 * MSATA3.0, 6Gb/s; 2 * SATA3.0 , 6Gb/s
MINI PCIE1 * MSATA SSD, 1 * WiFi module
Ethernet portRJ45 10/100/1000 Mbps Adaptive
Power input port1 inner diameter 2.5mm,external diameter 5.5mm
Audio portStandard 3.5 Audio input and output
Power and Working Environment
InputDC100-240V AC/50-60Hz
OutputDC 12V/3A
Consumption15W

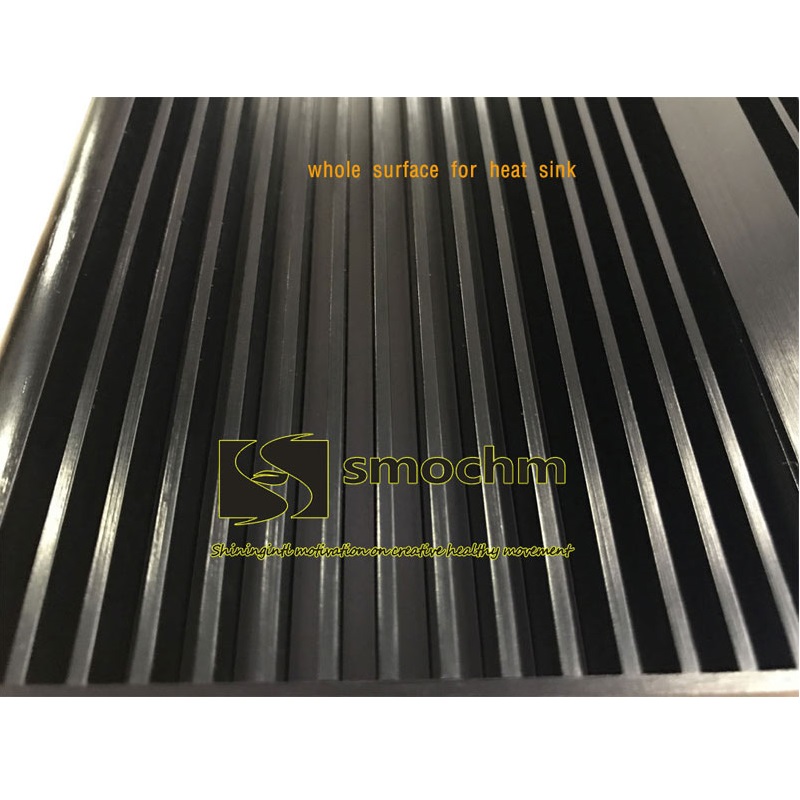

NoiseFanless System
Temperature0-70 Centigrade
Humidity10%-90%





shiningintl X86 intel  scp-02 industrial and embedded computer
